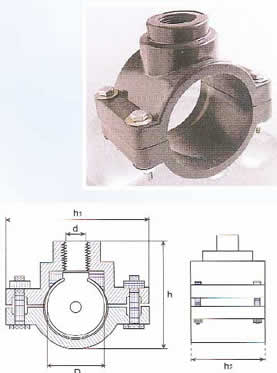

Pressure Pipe Fittings – 4 Bolt Clamp Saddle (U-PVC)

E46

DIMENSIONS – Diameter
D	d	h	h1	h2	PN
32	25	–	–	–	10
40	25	–	–	–	10
50	32	–	–	–	10
63	32	105	121	82	10
75	32	120	133	88	10
90	32	142	147	88	10
110	32	162	168	105	10

Pressure Pipe Fittings - 4 Bolt Clamp Saddle (U-PVC)

>> Back to Products List

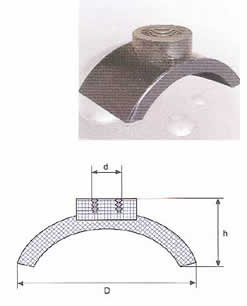

Clamp Saddle with Hose Adaptor (U-PVC)

DIMENSIONS – Diameter
	d	D	h	PN
63	20	74	–	10
90-25	25	95	40	10

Clamp Saddle with Hose Adaptor (U-PVC)
