Pressure Pipe Fittings – Blind Flanges (U-PVC)

E42

Pressure Pipe Fittings - Blind Flanges (U-PVC)

>> Back to Products List

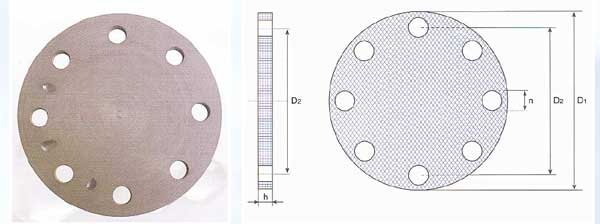

DIMENSIONS – Diameter
D1 D2 h nxu PN
20 96 65 11 14×4 16
25 105 75 12 14×4 16
32 115 85 14 14×4 16
40 140 100 15 18×4 16
50 150 110 16 18×4 16
63 165 125 18 18×4 16
75 185 125 19 18×4 16
90 200 160 20 18×8 16
110 220 180 22 18×8 16
125 250 210 24 18×8 16
140 250 210 26 18×8 16
160 285 240 29 22×8 16
200 340 295 30 22×8 16
225 340 295 30 22×8 16
250 395 350 34 22×12 16
280 395 350 30 22×12 16
315 445 400 31 22×12 16
355 505 460 35 22×16 16
400 565 515 35 22×16 16
