Pressure Pipe Fittings – Double Socket (U-PVC)

E38

Pressure Pipe Fittings - Double Socket (U-PVC)

>> Back to Products List

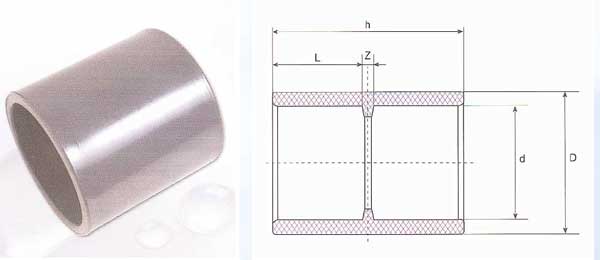

DIMENSIONS – Diameter
d D L Z h PN
20 27 17 3 36 16
25 33 20 3 42 16
32 41 23 3 48 16
40 50 26 3 56 16
50 60 30 4 64 16
63 75 37 3 76 16
75 90 43 3 89 16
90 108 50 7 108 16
110 127 61 7 129 16
140 160 76 6 157 16
160 185 86 8 179 16
200 218 107 11 224 10
225 224 119 7 244 10
250 275 131 7 269 10
280 307 145 10 304 10
315 344 164 16 344 10
355 – – – 10
400 432 206 7 419 10
