E43

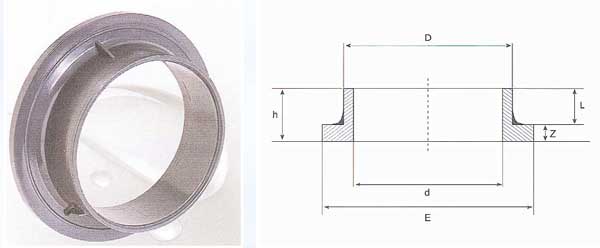

DIMENSIONS – Diameter | |||||
d | D | E | L | Z | h |
50 | 56 | 81 | 21 | 4 | 25 |
63 | 69 | 101 | 26 | 4 | 30 |
75 | 81 | 110 | 26 | 4 | 31 |
90 | 97 | 130 | 26 | 4 | 30 |
110 | 116 | 149 | 26 | 4 | 30 |
125 | 132 | 163 | 27 | 4 | 31 |
140 | 147 | 180 | 27 | 4 | 31 |
160 | 167 | 199 | 27 | 4 | 30 |
200 | 210 | 243 | 15 | 5 | 20 |
225 | – | – | – | – | |
250 | – | – | – | – | – |
280 | – | – | – | – | – |
315 | – | – | – | – | – |
355 | – | – | – | – | – |
400 | – | – | – | – | – |
