Pressure Pipe Fittings – Female Threaded End Cap (U-PVC)


E45

Pressure Pipe Fittings - Female Threaded End Cap (U-PVC)

>> Back to Products List

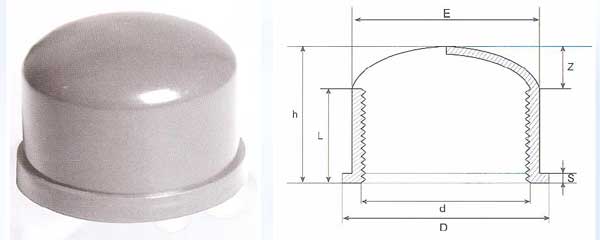

DIMENSIONS – Diameter
d D L E Z h S PN
20 29 16 27 8 24 6 16
25 36 21 32 8 29 6 16
32 44 25 41 7 32 6 16
40 53 25 49 12 37 7 16
50 64 30 60 14 44 7 16
63 79 37 74 18 55 8 16
75 91 38 91 25 63 – 16
90 110 53 110 23 75 – 16
110 132 59 124 32 91 13 16
125 146 70 140 27 97 12 16
140 149 75 165 33 108 7 16
160 191 100 177 36 136 12 10
200 226 101 219 44 145 15 10
225 – 119 248 47 165 – 10
250 275 131 275 62 183 – 10
280 – – – – – – 10
315 344 164 343 64 228 – 10
355 – – – – – – 10
400 – – – – – – 10

>> Contact us for more details
